Introducing the Astera Helios Tube, a compact and portable LED lighting tube that packs all the features of the popular Titan Tube into a smaller format. With 8 individually controllable pixels, the Helios Tube is designed for mounting in spaces where a Titan Tube wouldn’t fit and offers increased portability. It provides versatility while maintaining colour and brightness matching with the Titan Tubes.

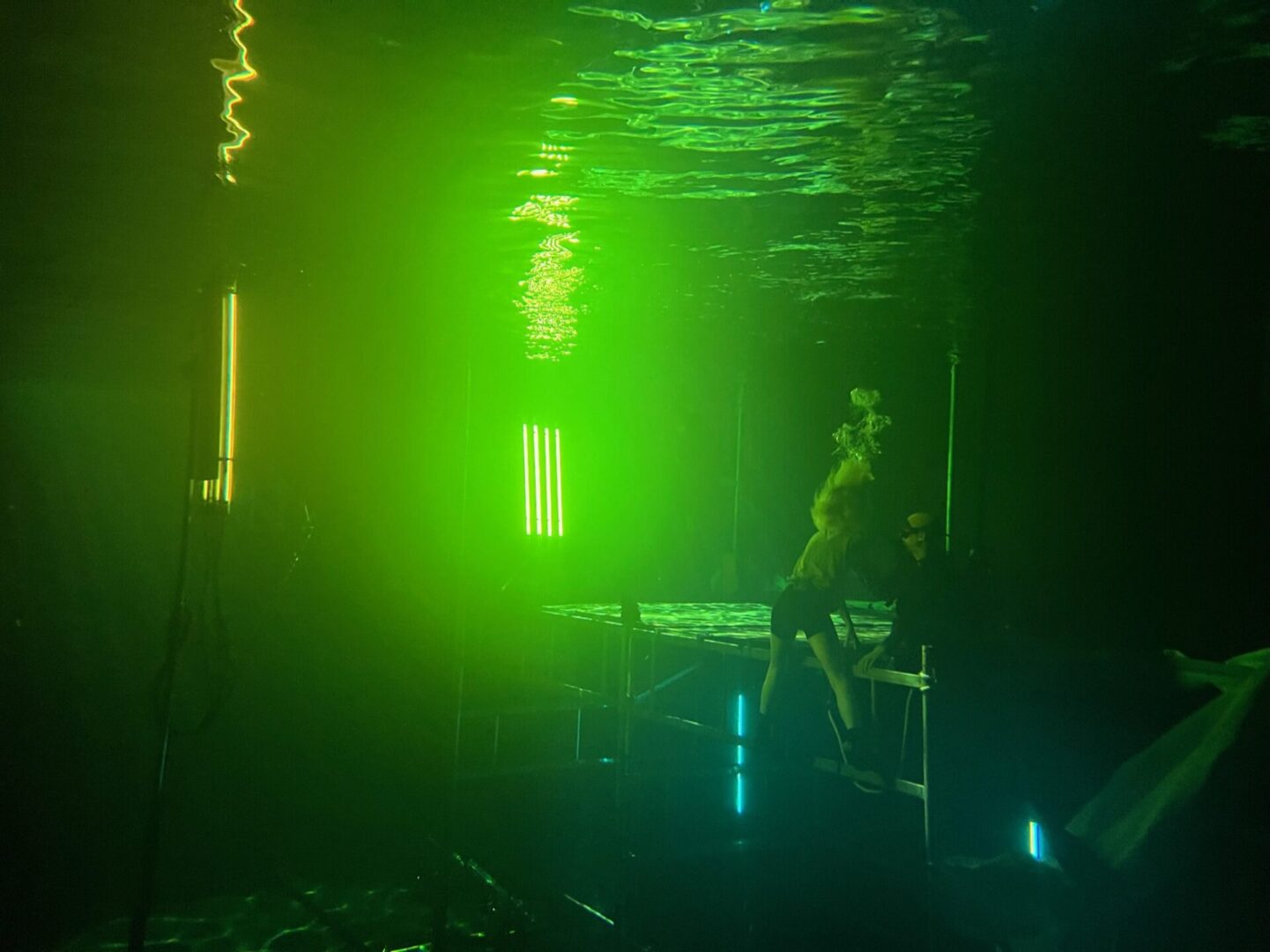

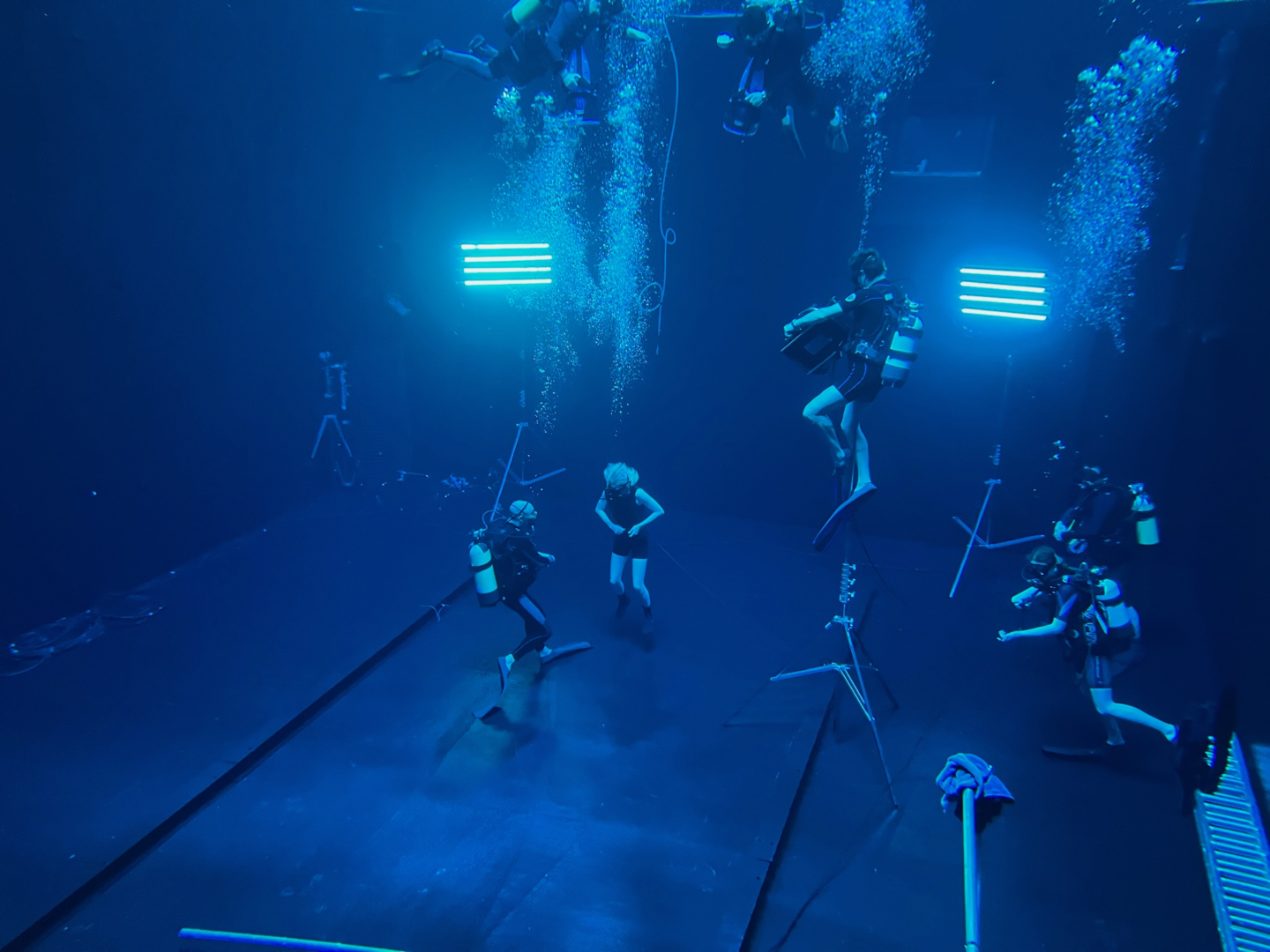

We offer underwater housings that enable Astera Helios to be used underwater while remaining fully controllable and charged via our 100ft (33m) underwater cables. These housings are also valuable for protecting Astera Helios tubes used in interior or exterior sets exposed to the elements.

Key Features

This kit contains 8 Helios Tubes with tuneable white and coloured light, see below for more information

  • 8 individually controllable pixels
  • Tuneable white light with a range from 1,750K to 20,000K
  • Ultra-high colour rendering (TLCI ≥96, CRI ≥96, CRI Re≥90 from 3200K to 6500K)
  • Boost Mode for ultra-bright white light for 2 hours or while connected to AC power
  • Backside display for quick access to DMX setup, colours, hue, saturation, and intensity control
  • Wired Data Connection (+Wireless)
  • Mounting accessories for easy fixation

With a maximum power draw of 24W, various colours, and total LED power of 36W, please see below for more information.

  • Colours: Red, Green, Blue, Mint, Amber
  • Total LED Power: 36W
  • Maximum Power Draw: 24W
  • Luminous Flux: 1340Lm
  • Strobe: 0-25Hz
  • Beam Angle: 120°
  • Field Angle: 180°
  • Pixels: 8

Electrical:

  • Battery: LG Chem Lithium-ion
  • Battery Lifetime: 70% after 300 cycles
  • Battery Runtime: Up to 20 hours
  • LED Lifetime: 50,000 Hours
  • Charging Time (nominal): 3 Hours
  • Input Voltage: 24V 1.25A

Physical:

  • Housing: Polycarbonate, metal end cap
  • IP Rating: IP65
  • Relative Humidity: 0-100%
  • Operating Temperature: 0-40 ˚C | 32-104 ˚F
  • Weight: 0.765kg | 1.68lbs
  • Dimensions: Ø42 x 550mm | Ø1.6” x H22.7”

Please see below for ranges wired and wireless DMX and wireless modules.

  • Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
  • Range: 300m | 330 Yards
  • Wired DMX: Supported via Astera PowerBox
  • Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

The Helios Tube offers the versatility of the Titan Tube in a smaller, more portable format, making it an excellent choice for various lighting needs, from studios to events.
